Zurn products are distributed through Reece in Australia.

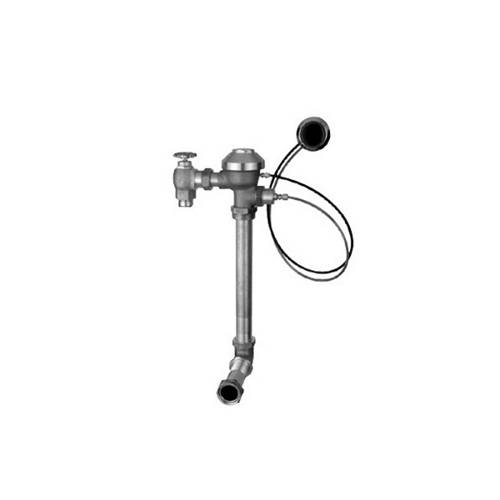

ZH-6140XL
Mains Pressure Hydraulic Concealed Flush Valve
Mains pressure hydraulic concealed flush valve to suit back entry slab type urinals. One flush valve required for every 1.8 metres of urinal length to AS 3500.1.2.1995 Table 9.2
- Min water supply pressure - 175kPa
- Max water supply pressure - 500kPa.
- Flush volume - 2L
- Flow rate required - 1.5L per sec
- Inlet connection - 25mm BSP
- Watermarked Approved - WM-00307
